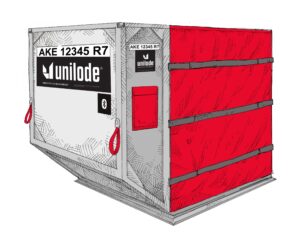

AKE
Classification
AKE, LD-3

Dimensions
Length 156cm | 61.5in
Width 153cm | 60.4in
Height 163cm | 64in
Top 201cm | 79in
Nominal capacity and weight
Usable Volume 4.3m3 | 152ft3
Maximum Gross Weight
1588kg | 3501lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

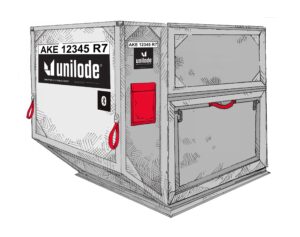

AKE Solid Door
Classification
AKE, LD-3 Solid Door

Dimensions
Length 156cm | 61.5in
Width 153cm | 60.4in
Height 163cm | 64in
Top 201cm | 79in
Nominal capacity and weight
Usable Volume 4.3m3 | 152ft3
Maximum Gross Weight
1588kg | 3501lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com
AKH
Classification
AKH, LD3-45

Dimensions
Length 156cm | 61.5in
Width 153cm | 60.4in
Height 114cm | 45in
Top 244cm | 96in
Nominal capacity and weight
Usable Volume 3.7m3 | 131ft3
Maximum Gross Weight
1588kg | 3501lbs
Best aircraft compatibility
A319 | A320 | A321
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

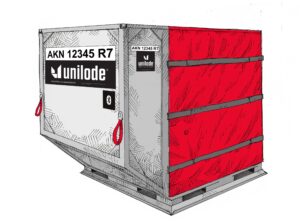

AKN
Classification
AKN, LD-3

Dimensions
Length 156cm | 61.5in
Width 153cm | 60.4in
Height 163cm | 64in
Top 201cm | 79in
Nominal capacity and weight
Usable Volume 4.2m3 | 150ft3
Maximum Gross Weight
1588kg | 3501lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

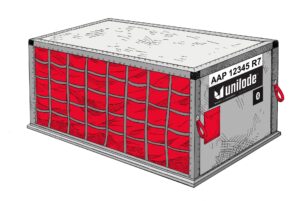

AAP
Classification
AAP, LD-9

Dimensions
Length 318cm | 125in
Width 224cm | 88in
Height 163cm | 64in
Top 318cm | 125in
Nominal capacity and weight
Usable Volume 10.34m3 | 365ft3
Maximum Gross Weight
6033kg | 13300lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B767 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com
ALF
Classification
ALF, LD-6

Dimensions
Length 318cm | 125in
Width 153cm | 60.4in
Height 163cm | 64in
Top 406cm | 160in
Nominal capacity and weight
Usable Volume 8.9m3 | 316ft3
Maximum Gross Weight
3175kg | 7000lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

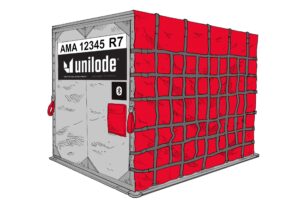

AMA
Classification
AMA, M1

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 244cm | 96in
Top 318cm | 125in
Nominal capacity and weight
Usable Volume 17.5m3 | 618ft3
Maximum Gross Weight
6804kg | 15000lbs
Best aircraft compatibility
Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

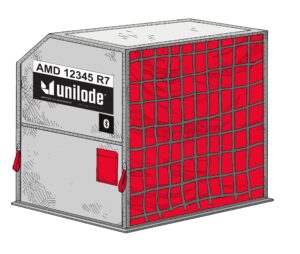

AMD
Classification
AMD, M1H

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 300cm | 118in
Top N/A
Nominal capacity and weight
Usable Volume 19.9m3 | 703ft3
Maximum Gross Weight
6804kg | 15000lbs
Best aircraft compatibility
Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

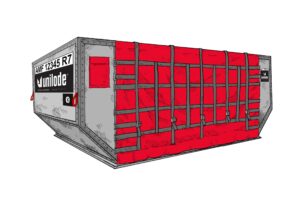

AMF
Classification
AMF

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 163cm | 64in
Top 406cm | 160in
Nominal capacity and weight
Usable Volume 14.5m3 | 512ft3
Maximum Gross Weight
5000kg | 11023lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787 | Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

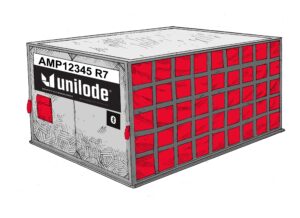

AMP
Classification
AMP, LD-9

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 163cm | 64in
Top 318cm | 125in
Nominal capacity and weight
Usable Volume 11.5m3 | 406ft3
Maximum Gross Weight
6804kg | 15000lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

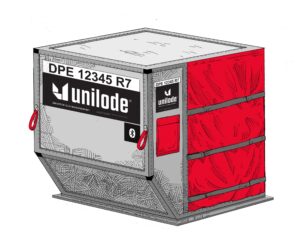

DPE
Classification
DPE, LD-2

Dimensions
Length 153cm | 60.4in
Width 119cm | 47in
Height 163cm | 64in
Top 156cm | 61.5in
Nominal capacity and weight
Usable Volume 3.5m3 | 124ft3
Maximum Gross Weight
1225kg | 2701lbs
Best aircraft compatibility
B747 | B767 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

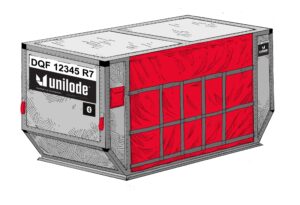

DQF
Classification
DQF, LD-8

Dimensions
Length 244cm | 96in
Width 153cm | 60.4in
Height 163cm | 64in
Top 318cm | 125in
Nominal capacity and weight
Usable Volume 7.1m3 | 253ft3
Maximum Gross Weight
2450kg | 5401lbs
Best aircraft compatibility
B767
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

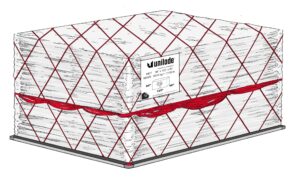

PMC
Classification
P6P, PMA, PMC

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 163cm | 64in
Top N/A
Nominal capacity and weight
Usable Volume 11.5m3 | 406ft3
Maximum Gross Weight
6804kg | 15000lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B767 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

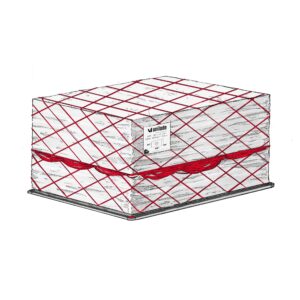

PAG
Classification
PAA, PAG, PAJ, PAP

Dimensions
Length 318cm | 125in
Width 224cm | 88in
Height 163cm | 64in
Top N/A
Nominal capacity and weight
Usable Volume 10.85m3 | 383ft3
Maximum Gross Weight
4626kg | 10199lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

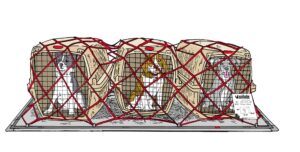

PKC
Classification
PKC

Dimensions
Length 156cm | 61.5in
Width 153cm | 60.4in
Height 114cm | 45in
Top N/A
Nominal capacity and weight
Usable Volume 3.54m3 | 125ft3
Maximum Gross Weight
1134kg | 2500lbs
Best aircraft compatibility
A319 | A320 | A321
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

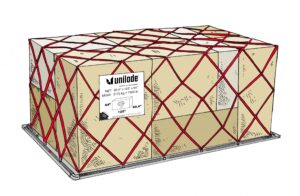

PLA
Classification
half pallet, PLA, PLB

Dimensions
Length 318cm | 125in
Width 153cm | 60.4in
Height 163cm | 64in
Top N/A
Nominal capacity and weight
Usable Volume 8.78m3 | 310ft3
Maximum Gross Weight
3175kg | 7000lbs
Best aircraft compatibility
A300 | A310 | A330 | A340 | A350 | A380 | B747 | B777 | B787 | Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

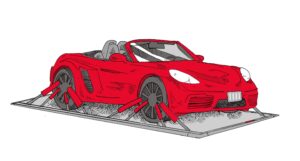

PRA
Classification
16ft pallet, PRA, PRF, PZA

Dimensions
Length 498cm | 196in
Width 244cm | 96in
Height 244cm | 96in
Top N/A
Nominal capacity and weight
Usable Volume 30.3m3 | 1070ft3
Maximum Gross Weight
11340kg | 25000lbs
Best aircraft compatibility
Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

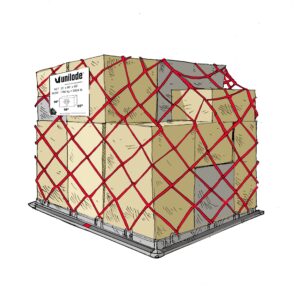

PYB
Classification
PYB

Dimensions
Length 244cm | 96in
Width 140cm | 55in
Height 203cm | 80in
Top N/A
Nominal capacity and weight
Usable Volume 6.09m3 | 215ft3
Maximum Gross Weight
1780kg | 3924lbs
Best aircraft compatibility
Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

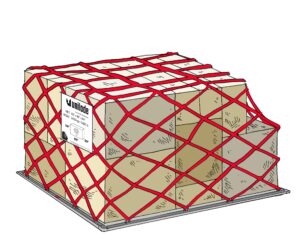

FQA
Classification
FQA, FQF

Dimensions
Length 244cm | 96in
Width 153cm | 60.4in
Height 163cm | 64in
Top N/A
Nominal capacity and weight
Usable Volume 6.66m3 | 238ft3
Maximum Gross Weight
2450kg | 5401lbs
Best aircraft compatibility
B767
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

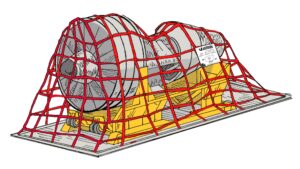

PGA
Classification
20ft pallet, PGA, PGE, PGF

Dimensions
Length 606cm | 238.5in
Width 244cm | 96in
Height 244cm | 96in
Top N/A
Nominal capacity and weight
Usable Volume 39.11m3 | 1381ft3
Maximum Gross Weight
13608kg | 30000lbs
Best aircraft compatibility
Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

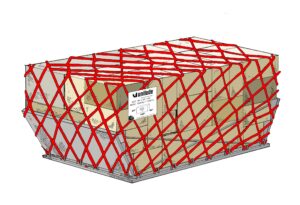

PMW
Classification
PMW, Wing Pallet

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 163cm | 64in
Top N/A
Nominal capacity and weight
Usable Volume 14.8m3 | 522ft3
Maximum Gross Weight
6804kg | 15000lbs
Best aircraft compatibility
Freighter aircraft
Image Usage: Our images should not be resized or altered in any way. Their use is only permitted if approved by Unilode. Please contact Hayley Willis, Director Marketing and Communications for more information: hayley.willis@unilode.com

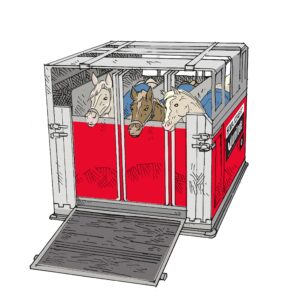

HMA
Classification
HMA, HMC, Horse Stall

Dimensions
Length 318cm | 125in
Width 244cm | 96in
Height 234cm | 92.2in
Top N/A
Nominal capacity and weight
Usable Volume 10.85m3 | 382ft3
Maximum Gross Weight
6804kg | 15000lbs
Best aircraft compatibility
Freighter aircraft
